Grinding Automation with In-Machine Measurement: Real-Time Dimensional Control and Consistent Quality

Overview

A leading precision component manufacturer faced grinding quality inconsistencies due to manual spark-out decisions. Mandala Solutions eliminated grinding process variability by implementing an automated in-machine measurement system, enabling real-time dimensional control, reducing operator dependency, and ensuring consistent tolerance compliance during cylindrical grinding operations.

Result: More accurate, consistent and efficient grinding operations with real-time quality control.

Challenges

• Manual spark-out judgment caused dimensional inconsistencies during grinding operations
• Frequent scrap and rework increased production losses and operational costs
• Tight tolerance requirements were difficult to maintain consistently
• Heavy dependency on operator skill affected process reliability and repeatability
• Post-process inspection delayed defect identification and impacted delivery timelines
• Low machine utilization reduced overall operational efficiency and productivity

👉 Production inefficiencies and inconsistent quality were directly impacting operational reliability and throughput.

Solution

• Implemented an automated in-machine diameter measurement system
• Integrated precision contact-based measurement with PLC & HMI controls
• Enabled real-time dimensional monitoring during grinding operations
• Configured automatic OK/NG alerts with visual and audible indications
• Established continuous measurement data logging for traceability and analysis
• Eliminated manual spark-out dependency through process automation

👉Solution enabled real-time monitoring and precision-based grinding control.

Implementation

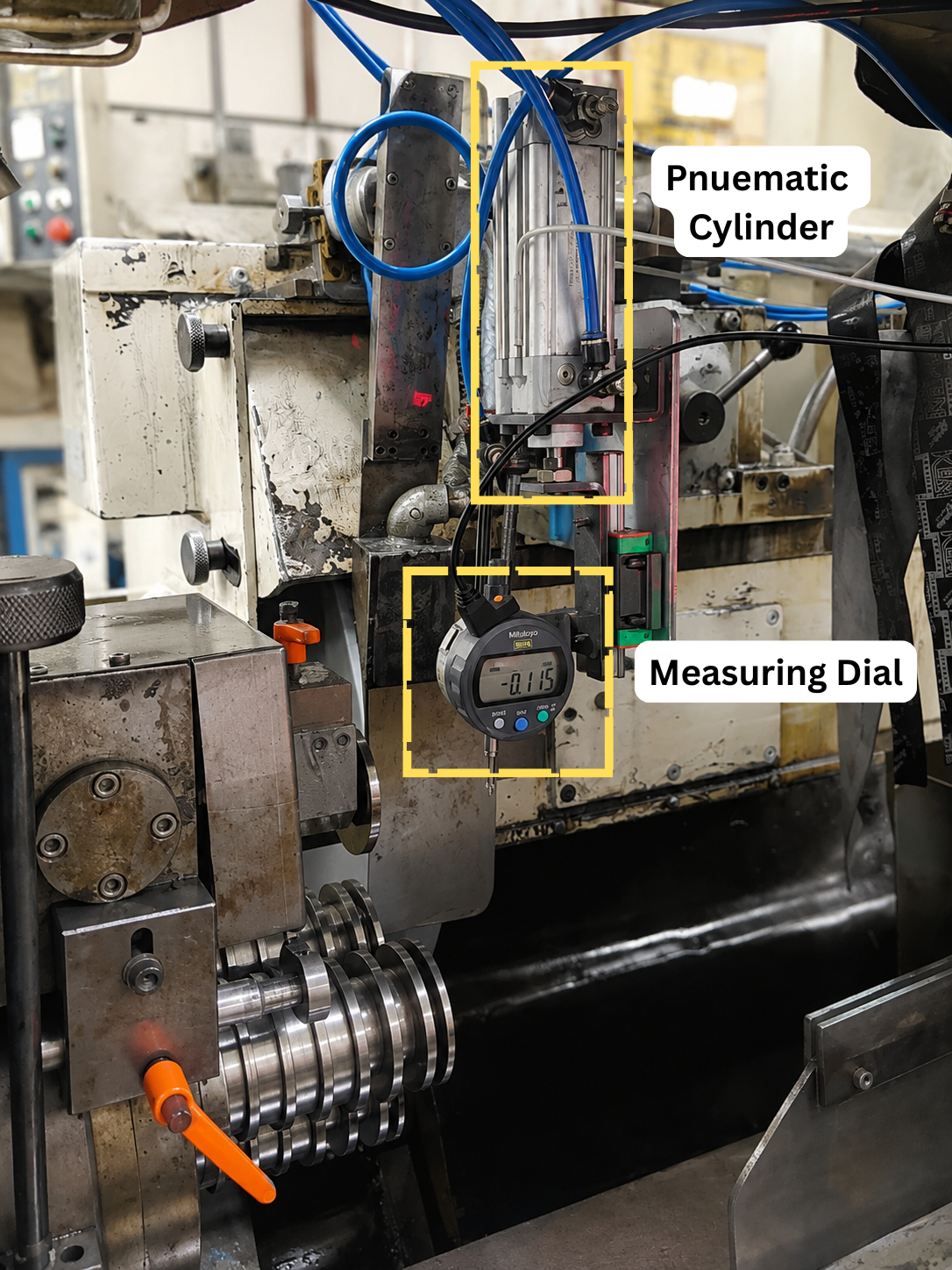

• Installed precision sensors directly within the cylindrical grinding setup
• Integrated measurement feedback with machine PLC for automated control actions

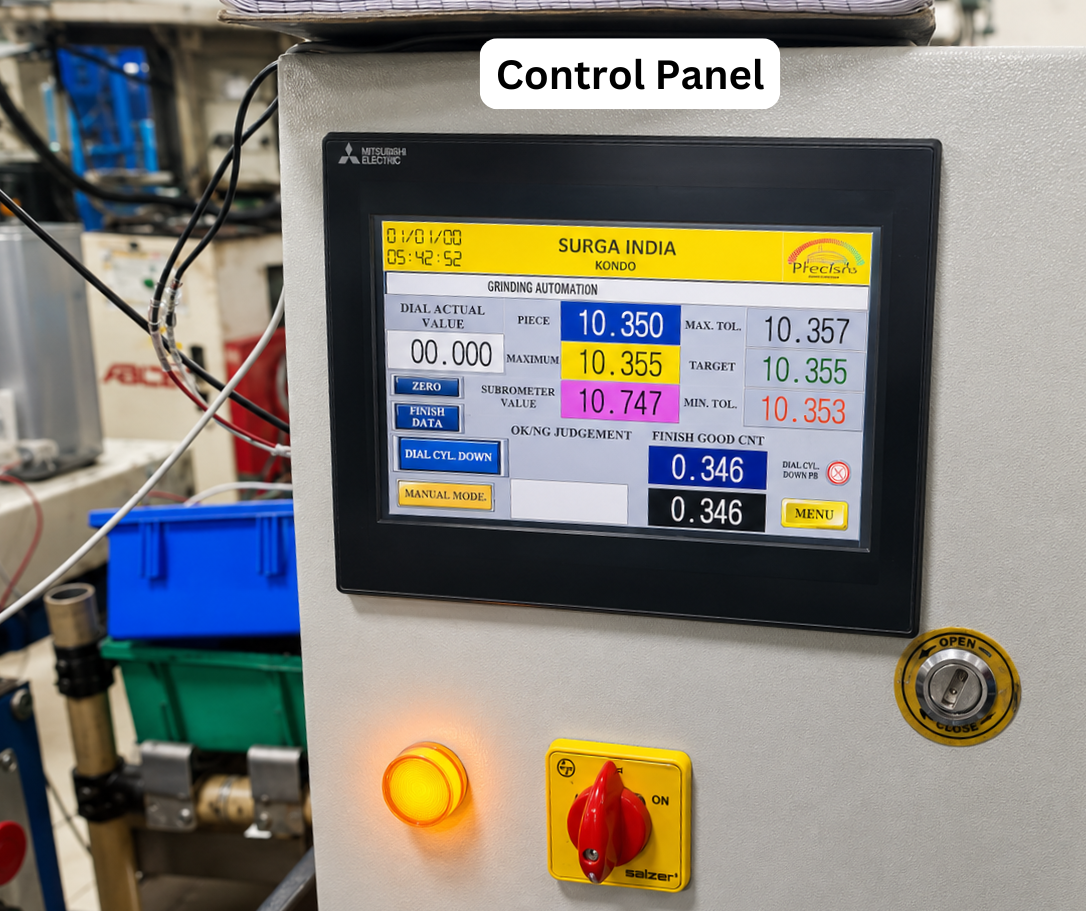

• Developed operator-friendly HMI screens for live process monitoring
• Configured alarm systems for immediate deviation identification
• Calibrated the system to maintain ±0.009 mm tolerance accuracy
• Conducted operator training and process validation for smooth deployment

👉 The solution was deployed seamlessly, enabling faster quality decisions, greater process stability, and improved operational efficiency.

Benefits

• Achieved 100% in-process inspection and real-time quality control
• Eliminated spark-out related dimensional errors and inconsistencies
• Reduced scrap, rework, and production downtime significantly
• Improved process stability and consistent component quality
• Increased machine efficiency and enhanced overall equipment effectiveness (OEE)
• Enabled faster decision-making through real-time production insights

Business Impact

The intelligent grinding automation solution delivered significant improvements in process consistency, production efficiency and quality assurance.

Reduced scrap and rework losses

Improved grinding accuracy and consistency

Increased machine productivity and OEE

Minimized operator dependency significantly

Enabled real-time quality assurance

Quality should be controlled during the process — not inspected after.
